기업명 |
|
Company name |
INNOBLUEIND. Co., Ltd. |
대표명 (CEO) |
Hwang Seong Kyu |
대표전화 (Phone) |
031-529-1657 |
이메일 (E-mail) |
innoblueind@daum.neta |
홈페이지 (Web Site) |
www.innoblueind.com |
주소 (ADD.) |
10F 1004-1ho NoblessBldg., 116, Sunhwagung-ro, Namyangju, Gyeonggido |
주요생산품 Major Product |
Nonpoint-Source Pollution Reduction System |
주요 사업분야 (Major Business) |
Nonpoint-Source Pollution Reduction System, Sediment waste-water Reduction System
(Plasma neutralization treatment System), Bridge Drainage System |
기업 소개 (Company Info.) |
INNOBLUEIND.CO.,Ltd. is a water treatment technology company that has developed a non-point pollution reduction system that purifies rainwater on road surfaces specialized in pre-treatment tank, a sediment waste-water reduction system that purifies sewage(concrete wastewater)at a construction site, and a high-efficiency bridge drainage system that does not accumulate sediment. |
제품(1) Product(1) |
Nonpoint-Source Pollution Reduction System |
제품설명 Description |
- By applying the VEST(Vortex-Enhanced Sedimentation Tanks) method, about 50% of particles are captured in the pre-treatment tank to reduce the stress of filters, and the loss of head is secured to minimize the installation site by utilizing existing drainage channel. |
제품 사진 Product photo |

|
제품(2) Product(2) |

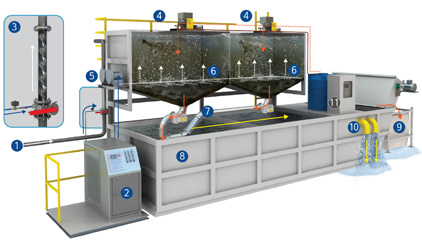

Sediment waste-water Reduction System(Plasma neutralization treatment System) |
사용용도 Use of Product |
Purification of various sewage(muddy water) and concrete wastewater at a construction site |
제품설명 Description |
- A device for treating sewage generated during excavation of the site, and a device for reducing waste water that can be installed even in small spaces
- A plasma neutralizer capable of purifying concrete wastewater by producing
neutralized carbon dioxide directly |
제품사진 Product photo |

|
제품(3) Product(3) |

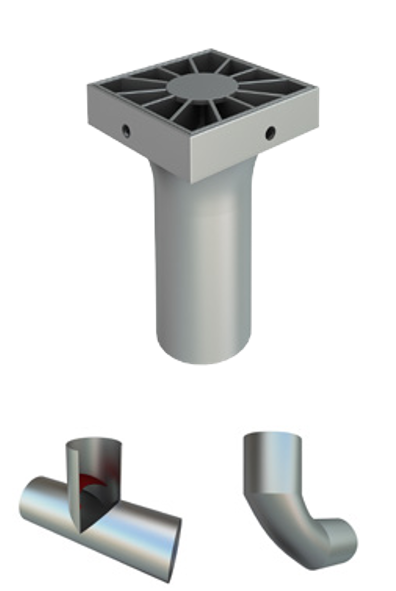

Bridge drainage system with high drainage efficiency and prevent soil deposition |
제품설명 Description |
- High-efficiency water collection equipment with high drainage efficiency on the bridge surface during heavy rain, low-flow high-speed drainage system that prevents soil deposition by inducing the kinetic energy of the accelerated vertical flow to the horizontal drain pipe without loss |
제품사진 Product photo |

|
기술 설명 Description |

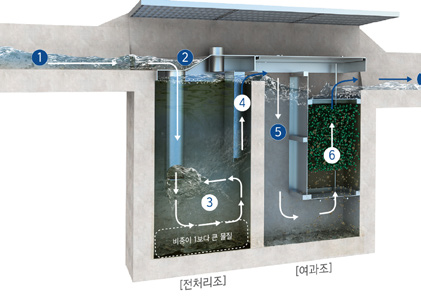

ㅇVEST(Vortex-Enhanced Sedimentation Tanks) method
- Installation of the waterway gradient at least at the bottom of the existing side or drain pipe as the loss head is securedA technology that greatly increases sedimentation efficiency by capturing particles of pre-treatment tank and increasing the air time of particles up to five times compared to the existing line of flow |
기술설명 Description |
ㅇPlasma neutralization treatment System
- To neutralize concrete alkaline water from tunnel and subway sites, use a burner that incorporates plasma technology rather than conventional methods(thin sulfuric acid, compressed carbon dioxide) to ensure economic feasibility and safety
Combining plasma technology with fossil fuels(LPG, LNG) to induce complete combustion and directly produce carbon
dioxide to neutralize alkaline water |
첨 부 Attachment |
이노블루산업(주).pdf
|
