| 기업명 |
|
| Company name |
Integrity Diagnostics Korea |
| 대표명 (CEO) |
Kim Bong gi |
| 대표전화 (Phone) |
042-863-7782 |
이메일 (E-mail) |
peterkim@idkorea.org |
| 홈페이지 (Web Site) |
www.idkorea.org |
주소
(ADD.) |
#306, 35, Techno 9-ro, Yuseong-gu, Daejeon |
주요생산품
Major Product |
Acoustic Emission Test(AET) Fault Diagnosis Solution Service |
주요 사업분야
(Major Business) |
Non-destructive testing and predictive diagnostic systems using acoustic emission testing(AET) techniques |
기업 소개
(Company Info.) |
IDK Inc. applies innovative advanced non-destructive testing technology using acoustic emission testing(AET) techniques to provide predictive diagnostic and health analysis solutions for industrial facilities. This is a low-cost, high-efficiency, and high- reliability diagnostic technology that fundamentally prevents safety accidents, prevents unexpected system outages, and can be measured while in operation. |
제품(1)
Product(1) |
Acoustic Emission Test(AET) Fault Diagnosis Solution Service |
제품설명
Description |
- When stress is applied to the material, it is deformed or destroyed, and elastic waves, which are deformation energy generated by crack generation, are detected by AE sensors installed on the surface by propagating inside the material, and signal analysis processing technology |
제품 사진
Product photo |
|
제품(2)
Product(2) |

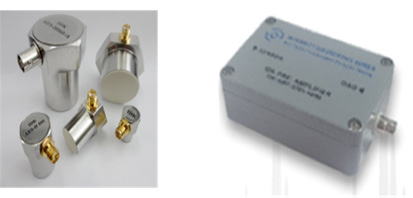

(Left) Sensors(H/W)/ (Right) Pre Amplifier(H/W) |
제품설명
Description |
- Sensors(H/W): Resonant sensor and broadband AE sensor using piezoelectric elements
- Pre Amplifier(H/W): Analog amplifier providing 40/60dB gain |
제품사진
Product photo |
|
제품(3)
Product(3) |
DAQ Board(H/W) |
제품설명
Description |
- FPGA-based ultra-fast big data processing(10MSPS/channel)
- Ultra-fast AE parameter extraction(1000Hits/sec)
- 17 AE Features(Parameters) provided |
제품(4)
Product(4) |

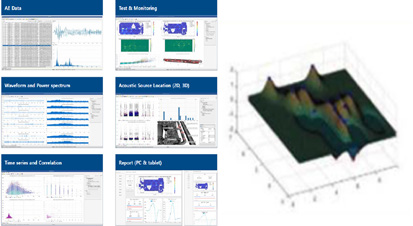

AE Software(AE Studio) |
제품설명
Description |
- Development of a real-time AE signal collection and analysis system
- Development of customized systems and modules according to defect type and diagnosis target structure
- Development of software for controlling AE acquisition hardware |
제품사진
Product photo |
|
기술 설명
Description |
ㅇExplosion proof certification(required for oil, chemical plants and hazard zones)
- Obtained Korea’s only sensor explosion-proof certification, AET system explosion-proof certification(all applicable to hydrogen gas environment) |
기술설명
Description |
ㅇDevelopment of high-performance, low-cost embedded solution(world’s first)
- Supply of CPU-integrated 4-channel standalone type products and solutions that can be applied to various purposes such as single-channel defect inspection equipment(world’s first)
|
기술설명
Description |
ㅇSecuring the establishment of empirical cases of AE technology application
- Completed track record for POSCO, LG Chem, LG Biotechnology Research Institute, Lotte Fine Chemical, and LS Electronics
ㅇSupport for web-based analysis system applying artificial intelligence
- Prediction of destruction stage based on probability characteristics of sequentially occurring AET signal generation intervals
|
첨 부
Attachment |
 (주)아이디케이.pdf
|
