| 기업명 |
|
| Company name |
GASROAD.Co., Ltd. |
| 대표명 (CEO) |
Gil Young Man |
| 대표전화 (Phone) |
042-862-0892 |
이메일 (E-mail) |
nys0622@gasroad.kr |
| 홈페이지 (Web Site) |
www.gasroad.kr |
주소
(ADD.) |
192,techono 2-ro Yuseong-gu, Daejeon, Republic of Korea |
주요생산품
Major Product |
proof test equipment |
주요 사업분야
(Major Business) |
Test Equipment&Facility, Rocket Engine, Pressure Vessel |
기업 소개
(Company Info.) |
|
제품(1)
Product(1) |
proof test equipment |
제품설명
Description |

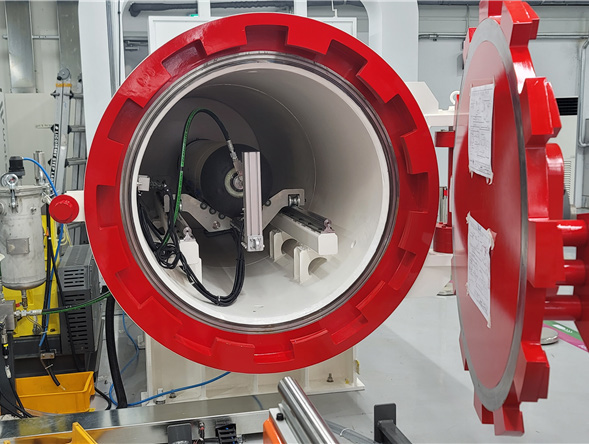

Pressurization and cycling test equipment in extreme environment with 105MPa, -40~80℃. Which includes the design of the pressurization system with the safety chamber in accordace with the test requirements |
제품 사진
Product photo |
|
제품(2)
Product(2) |
burst test equipment |
사용용도
Use of Product |
burst test for pressurization vessel |
제품설명
Description |

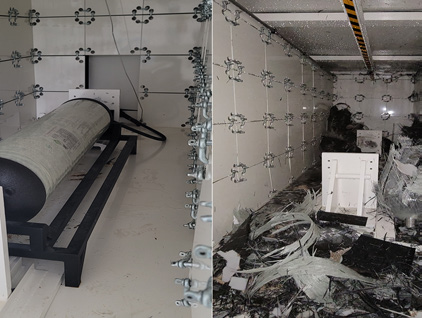

fatigue test and cycling test equipment during pressurization test up to max. 400MPa. Which is to prove the fatigue, burst and cycling test process. It is required the safety chamber to absorb impact power during the test |
제품사진
Product photo |
|
제품(3)
Product(3) |
measurement technic of temperature and pressure |
사용용도
Use of Product |
measurement of the temperature and pressure which is the specific position of the test pars with thermo-couple and pressure rake |
제품설명
Description |

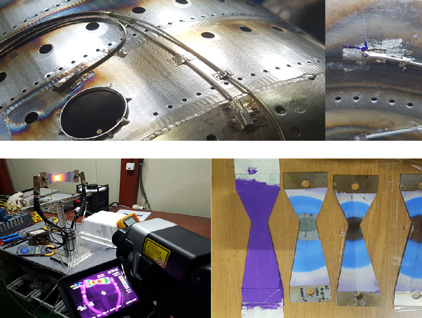

measurement temperature on the exact spot insulated and protected from unexpected test environment. It measure the temperature of butterfly test specimen with specific paint which is not accessible point |
제품사진
Product photo |
|
보유기술 (1)
Technology |
Ultra high pressure and environment test |
기술 설명
Description |
- 150MPa @-40~+80℃
- cycling/fatigue test: 2~105MPa 10sec/cycle |
보유기술 (2)
Technology(2) |
Burst and fatigue test |
기술설명
Description |
- burst: pressurization to 240MPa
- fatigue: 2~125MPa 20sec/Cycle |
기술설명
Description |
ㅇ Measurement technic of temp.and pressure
- temperature, pressure rake design and Mfg
- measurement of total temp. and pressure
ㅇBurner for simulation of heating source
- design and mfg. of gas turbine combustor
- design and mfg. of the combustor for the gas of H2, NG, LPG, NH3, CO etc |
첨 부
Attachment |
 (주)_가스로드.pdf
|
