| 기업명 |
|
| Company name |
POWER MnC Co., Ltd. |
| 대표명 (CEO) |
전재영 |
| 대표전화 (Phone) |
052-955-5920 |
이메일 (E-mail) |
pw@powermnc.com |
| 홈페이지 (Web Site) |
www.powermnc.com |
주소
(ADD.) |
8, Cheoyongsaneop 5-gil, Cheongnyang-eup, Ulju-gun, Ulsan, 44988, Republic of Korea |
주요생산품
Major Product |
FHS, Fuel Handling System |
주요 사업분야
(Major Business) |
Fuel Handling System, Crane for Nuclear Plant and Facilities for safety system |
기업 소개
(Company Info.) |
“Core component, equipment design manufacturing and service provider in Nulclear and Steel-making industries.” POWER MnC Co., Ltd. is the specialized company for industrial instrument and control device and facility manufacturing. We specialize in technical support and engineering of fuel handling system, crane for nuclear power plant and safety facility, diagnostic system for steel facility, field facility operation. |
제품(1)
Product(1) |

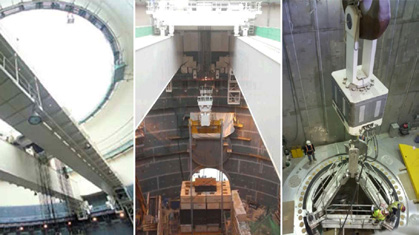

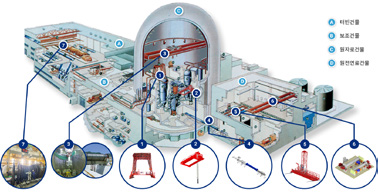

FHS, Fuel Handling System |
제품설명
Description |
RM, Refueling Machine: Extract/load nuclear fuel from/into the reactor vessel SFHM, Spent Fuel Handling Machine: Handles nuclear fuel in the nuclear fuel building CEACP, CEA Change Platform: CEA in reactor building replacement tool |
제품 사진
Product photo |
|
제품(2)
Product(2) |
COSAS&SFP Crane (Crane Operation Safety Assurance System&Single Failure Proof Crane) |
제품설명
Description |
Preventing damage to each part of crane and crush of salvage goods caused while lifting heavy goods with crane(Preventing Single Failure)Core facility of nuclear power plant crane that satisfy Single Failure Proof Crane, NUREG-0554), applicable to handle hazardous substances, includin g radioactivity |
제품사진
Product photo |
|
제품(3)
Product(3) |

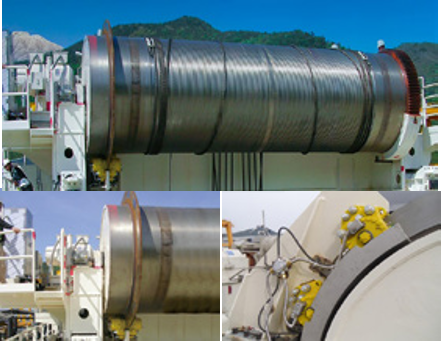

Precision Load Positioner |
제품설명
Description |
For precise adjust of top and bottom when assembly and disassembly heavy structure or equipment and rotation of salvage goods Control the vertical position with precision of 0.025mm to 1.2mm per second with in the maximum vertical stroke of 305mm Installation on Polar Crane and Main Hook of General Crane For precision control of heavy lift operation, such as reactor |
제품사진
Product photo |
|
제품(4)
Product(4) |

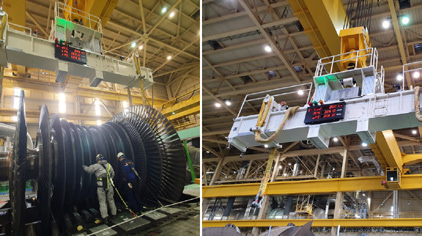

PLB(Precision Lifting Beam) |
제품설명
Description |
- Ultra-file hydraulic control method applicated in PLP, control the up and down position at a
rate of 0.01mm per second
- Prevent damage of Bearing Jounal by leveling with motor
- Automate adjustment of lifting block(Store Rotor in each location)
- Installation of lifting beam angle sensor
Operation of various information display(weight, angle, top and bottom position) and
wireless remote control |
제품사진
Product photo |
|
기술 설명
Description |
ㅇ Specified by Advanced Technology Center Association(ATC)
- Development of Master Assembly and Integrated Transfer
- System for Nuclear Fuel Re-loading
- Development and Construction of Physical Performance Test
- Equipment Optimized for APR1400 |
기술설명
Description |
ㅇ Developed Monitoring System for Operation of continuous casting facilities
- Localization development of Off-Line Roll Checker
- Development of world’s first On-Line Roll Checker(non-stop measurement)
- Selected as World Best World First(POSCO) |
기술설명
Description |
ㅇ Obtained KEPIC-MN&ASME U/S/PP Certification
- Establishment of quality assurance system meeting Global Standard
- Required certification for manufacturing nuclear facility(cast, etc.) and core parts
ㅇEarned New Excellent Technology(NET) for Turbine Rotor Precision Lifting Device(PLB)
- Equipment installed on the ceiling crane of the plant turbine building to precisely lift heavy objects such as turbine/generator rotors |
첨 부
Attachment |
 (주)파워엠엔씨.pdf
|
