| 기업명 |
|
| Company name |
DAWONSYS Co.,Ltd |
| 대표명 (CEO) |
Park Sun soon |
| 대표전화 (Phone) |
031-8085-3041 |
이메일 (E-mail) |
pstid@dawonsys.com |
| 홈페이지 (Web Site) |
www.dawonsys.com |
주소
(ADD.) |
485, Sihwahosu-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea |
주요생산품
Major Product |
NBI&ECH power supply system |
주요 사업분야
(Major Business) |
Power supply of Nuclear fusion&Accelerator, Plasma system&Industrial rectifier, Railway Vehicle Etc. |
기업 소개
(Company Info.) |
DAWONSYS is a company specialized in the manufacture and technology of nuclear fusion and accelerator, Plasma system, Industrial rectifier and Railway Vehicle in korea. |
제품(1)
Product(1) |

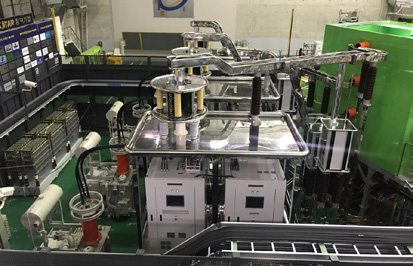

NBI&ECH power supply system |
제품설명
Description |
It consists of a power supply and control system that supplies DC high voltage and current of Maximum 120kV, 70A to NBI ion source and Gyrotron |
제품 사진
Product photo |
|
제품(2)
Product(2) |

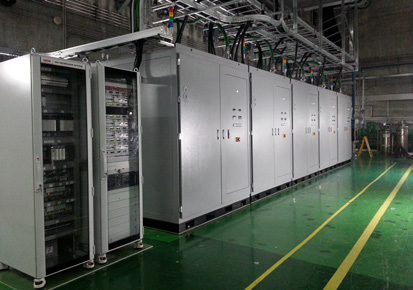

AC-DC Converter system |
사용용도
Use of Product |
A power converter that supplies a large current to the superconducting coil |
제품설명
Description |
Max. 68kA AC-DC Converter system and control system |
제품사진
Product photo |
|
제품(3)
Product(3) |

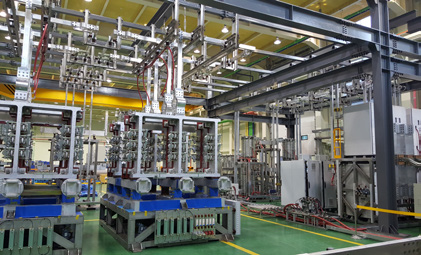

In-vessel Control Coil Power Supply |
사용용도
Use of Product |
High-frequency power supply system for plasma stability |
제품설명
Description |
Consists of a power supply and control system with 10 kHz high-frequency for stable current supply and quick response to IVCC(In-Vessel Control Coil) |
제품사진
Product photo |
|
기술 설명
Description |
ㅇHigh voltage&Large current Tech
- High voltage: PSM(Pulse Step Modulator) type&Each duty control(Possible for Fine voltage control)
- Large current: Parallel SCR control&Analysis(Structural, Electromagnetic field, Thermal Etc.) |
기술설명
Description |
ㅇHigh precision power Tech
- Output stability ±10ppm completion(PLS-II @ 1,000A)
- Delivery for PAL XFEL, PLS-II, KBSI, IBS, KIRAMS Etc |
기술설명
Description |
ㅇ Pulse Power Tech
- PFN(Pulse Forming Network) type, Marx type, Hard tube type Design
- Adjustable Pulse Width&Frequency, Inverter power supply for large capacity capacitor charging(XFEL, PLS-II Etc.) |
첨 부
Attachment |
 (주)다원시스.pdf
|
