| 기업명 |
|
| Company name |
Supercoil Co., Ltd. |
| 대표명 (CEO) |
Cho Sang HO |
| 대표전화 (Phone) |
055-289-7220 |
이메일 (E-mail) |
supercoil@supercoil.co.kr |
| 홈페이지 (Web Site) |
|
주소
(ADD.) |
Building no. 84. 20, Changwondaehak-ro, Uichang-gu, Changwon, Gyeongsangnam-do, Republic of Korea |
주요생산품
Major Product |
R&D CONSULTING |
주요 사업분야
(Major Business) |
High-Temperature Superconducting Magnets, MgB2 Magnet and their R&D consulting, MAGHEET |
기업 소개
(Company Info.) |
Supercoil Co., Ltd. is a professional manufacturing company with R&D consulting of superconducting application machineries based on superconducting magnet engineering technologies such as superconducting induction heater and permanent magnet induction heater, etc. We have various design technologies including electromagnetic, heat transfer, structural design and analysis as well as manufacturing and performance test of superconducting magnets to operate on the cryogenic condition. Recently, MgB2
superconducting magnets was developed and tested successfully at the wold first. We hope to be a key
company for the future industries with an eco-friendly, high energy efficient, state of the art technologies. |
제품(1)
Product(1) |
R&D CONSULTING |
제품설명
Description |

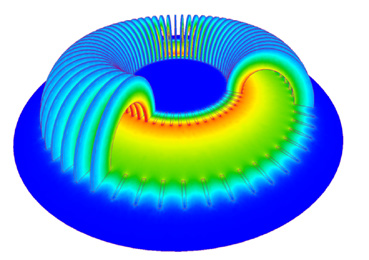

Electromagnetic FEM model development of various superconducting magnets
Design of heat transfer analysis FEM model for the cryogenic cooling condition
Structural design by considering electromagnetic force of magnets
Total solutions based on multi-physics analysis available for electromagnetic, thermal and
structural analysis at the same time
Design and fabrication of High current superconducting leads |
제품 사진
Product photo |
|
제품(2)
Product(2) |
Superconducting Magnet |
사용용도
Use of Product |
Thermal spray coating powder |
제품설명
Description |

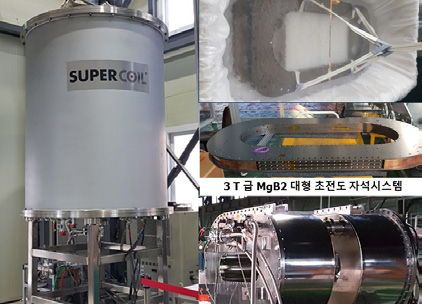

Cryogenic property measurement system(available magnet size: D1.5m x H1.6m) for superconducting magnets
3 T HTS magnet for superconducting induction heater(Iop= 540A @ 10K, L1247mm x H622mm x 57mm)
3 T MgB2 magnet for superconducting induction heater(Ic=330A @ 10K, L1353mm x H730mm x 76mm)
Multi-purpose winding machine(Max. Dia. 2m, max. tensile force; 100 kgf) |
제품사진
Product photo |
|
제품(3)
Product(3) |

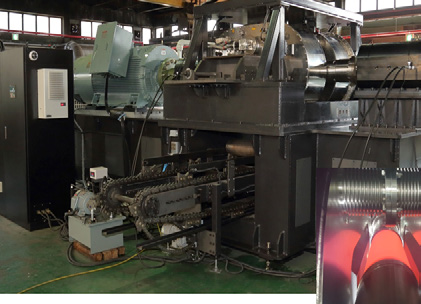

MAGHEET(Superconducting induction heater) |
사용용도
Use of Product |
MAGHEET(Superconducting induction heater, Permanent magnet induction heater) |
제품설명
Description |
Heating for various metals(Fe, SUS, Al, Cu, Ti alloy etc.) maximum 1300℃ with over 90% energy efficiency
Superconducting magnet type and permanent magnet type
Rotating billet type and rotating magnet type |
제품사진
Product photo |
|
보유기술 (1)
Technology |
Superconducting Magnet Design |
기술 설명
Description |
Design and development of the electromagnetic and heat transfer and structural FEM model
Total solutions based on multi-physics FEM analysis available |
보유기술 (2)
Technology(2) |
System Design and Development Technologies of superconducting application machineries using superconducting magnets |
기술설명
Description |
System design and manufacturing technologies such as a superconducting induction heaters, superconducting motors' and generators' field coils and coil guns |
기술설명
Description |
ㅇ Manufacturing Technologies for HTS and MgB2 superconducting magnets
- A multipurpose winding machine for the production of small and large sized superconducting magnets
Cryogenic property measurement system for performance test of superconducting magnets
ㅇ Excellent technical NETWORK
- Having a close network of experts in companies, research institutes, and universities related to superconducting technologies |
첨 부
Attachment |
 수퍼코일.pdf
|
